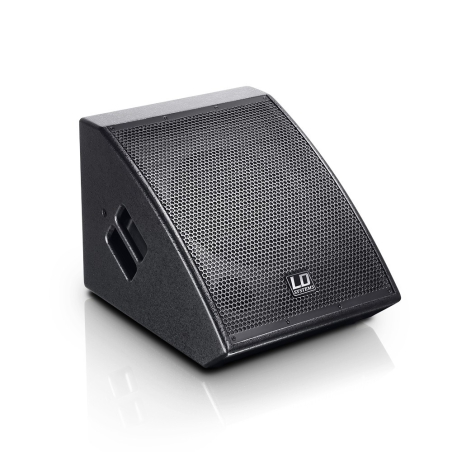

LD Systems Mon 101 A G2 Actieve 10 inch floormonitor

LD Systems MON 101 A G2 Actieve (Live) floormonitor.

PA loudspreker.
Type Powered Low/mid driver 10 inch
Woofer maat 254 mm
Woofer type coaxiale luidspeker
Woofer magneet Feriet
Woofer merk Custom-made
Woofer spreekspoel formaat 2 inch
Woofer voice coil (mm) 50.8 mm
HF driver formaat 1 inch
HF driver afmeting 25.4 mm
HF driver magneet Ferriet
HF driver merk Custom-made
HF driver driver (spreek spoel)1 inch
HF driver voice coil 25.4 mm
Versterker Klasse A/B
Spreidhoek (H x V) 75 x 75 °
Systeem Power (RMS) 150 W Peak vermogen 600 W
Frequency response 90 - 20000 Hz
Crossover frequency 3300 Hz
Sound Pressure Level (Geluidsdruk) (1W/1m) 99 dB Max. SPL (continuous) 113 dB
Max. SPL (peak) 121 decibel.
Protection circuits limiter, short circuit
Controls On / Off, volume
Indicators Limit, Power, Signal
Line Ingang 1x Line
input connectors 6.3 mm jack,
XLR Line uitgang 1
Line output connectors XLR
Operating voltage transformer
Operating voltage 230 V AC / 50-60 Hz
Cabinet materiaal 15 mm Plywood
Cabinet constructie Bass Reflex
Monitor hoek 35 Graden
Breed 380 mm Diep 335 mm Hoog 466 mm
Gewicht 15,3 kg
Ergonomisch gevormde handvatten.
2 Jaar Garantie.
